Keccak-256, Ethereum vs Solana addresses, and RPC basics

Today I learned and summarized the essentials: Keccak-256 hashing, how Ethereum addresses are derived, how Solana keys differ, and how RPC/JSON-RPC calls work when querying balances.

Keccak-256

Keccak-256 is a cryptographic hash function widely used in Ethereum.

• Collision resistance: extremely difficult to find two inputs with the same hash.
• Pre-image resistance: infeasible to invert the hash to recover the original input.
• Output length: 256 bits (32 bytes).

Try it out with an online Keccak-256 tool if you want to experiment.

Ethereum addresses (brief)

Generation process:

1. Generate an elliptic-curve keypair (EdDSA/SECP256k1 depending on the stack). The public key is typically 64 bytes (uncompressed) or 32 bytes for some curves.
2. Hash the public key with Keccak-256.
3. Take the last 20 bytes of the hash.
4. Convert to hexadecimal and prefix with 0x — this is the Ethereum address.

Example diagram:

Example (conceptual):

public_key -> keccak256 -> 32 byte hash -> last 20 bytes -> 0x... (address)

References: implementations in Ethers.js and Backpack (wallets) follow this process.

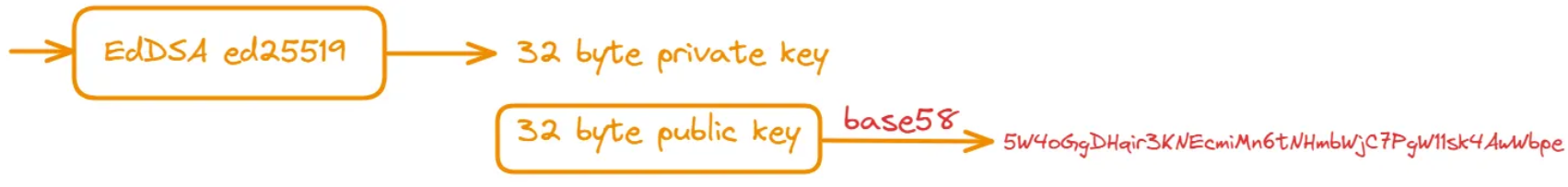

Solana public keys

• Solana public keys are 32 bytes and are commonly presented in Base58 (e.g. 5W4oGg...).
• Solana addresses are just the public key encoded — no extra Keccak hashing/chopping step is required like Ethereum.

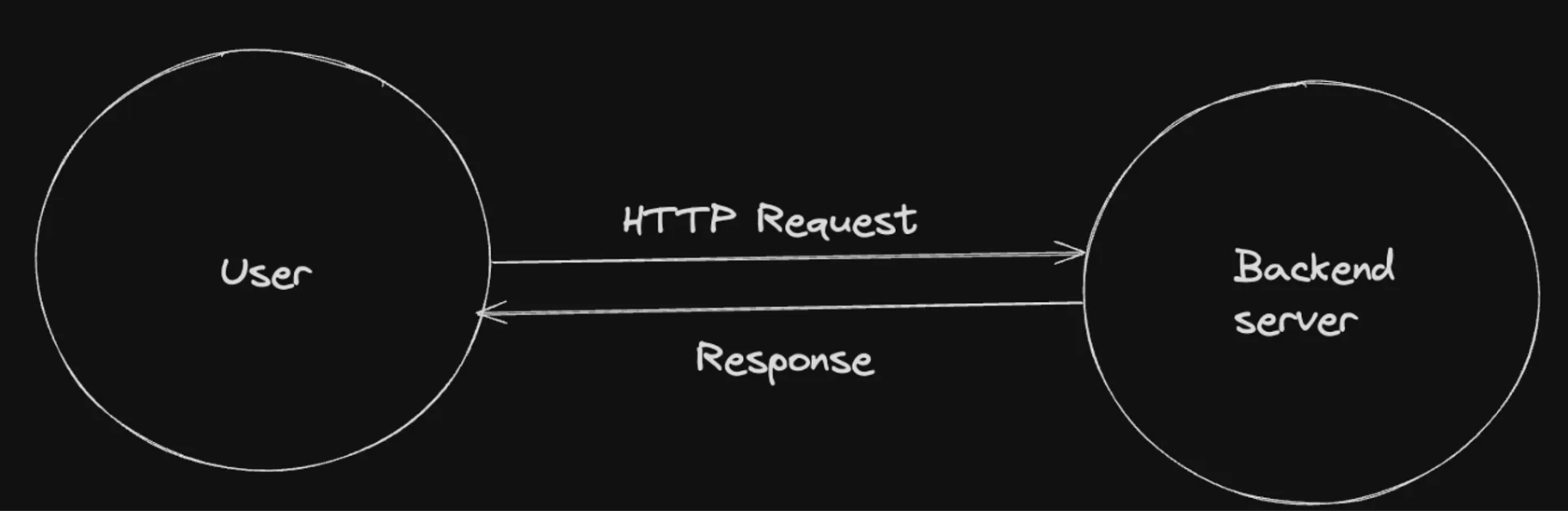

Frontend vs Backend and RPC

• Backend servers: run application logic and may talk to blockchain RPC providers.
• Frontend: issues HTTP requests to backends or directly to RPC endpoints for quick queries.

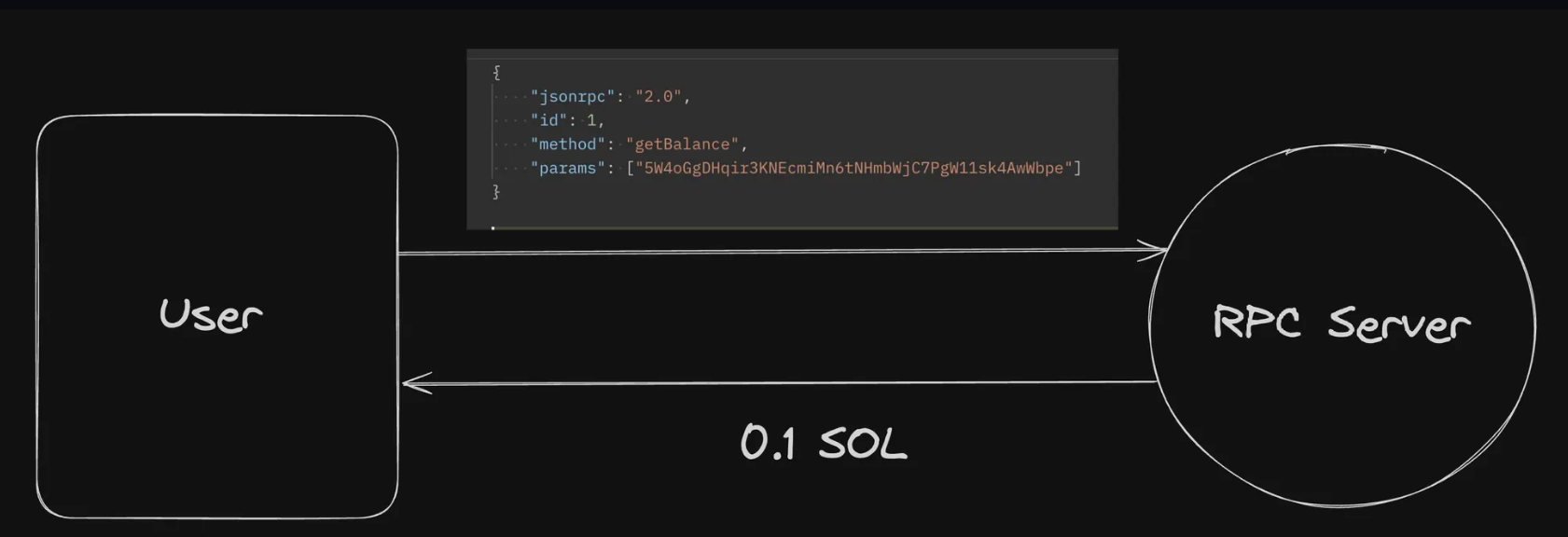

Example typical flow when checking an on-chain balance:

1. Frontend sends a JSON-RPC request to an RPC server (either a public provider or your backend proxy).
2. RPC server queries the node(s) and returns the result.

Diagram:

JSON-RPC examples

Solana JSON-RPC example (getAccountInfo):

{
  "jsonrpc": "2.0",
  "id": 1,
  "method": "getAccountInfo",
  "params": ["Eg4F6LW8DD3SvFLLigYJBFvRnXSBiLZYYJ3KEePDL95Q"]
}

Ethereum JSON-RPC example (getBalance):

{
  "jsonrpc": "2.0",
  "id": 1,
  "method": "eth_getBalance",
  "params": ["0x8BCd4591F46e809B15A490F5C6eD031FDDE0bee0", "latest"]
}

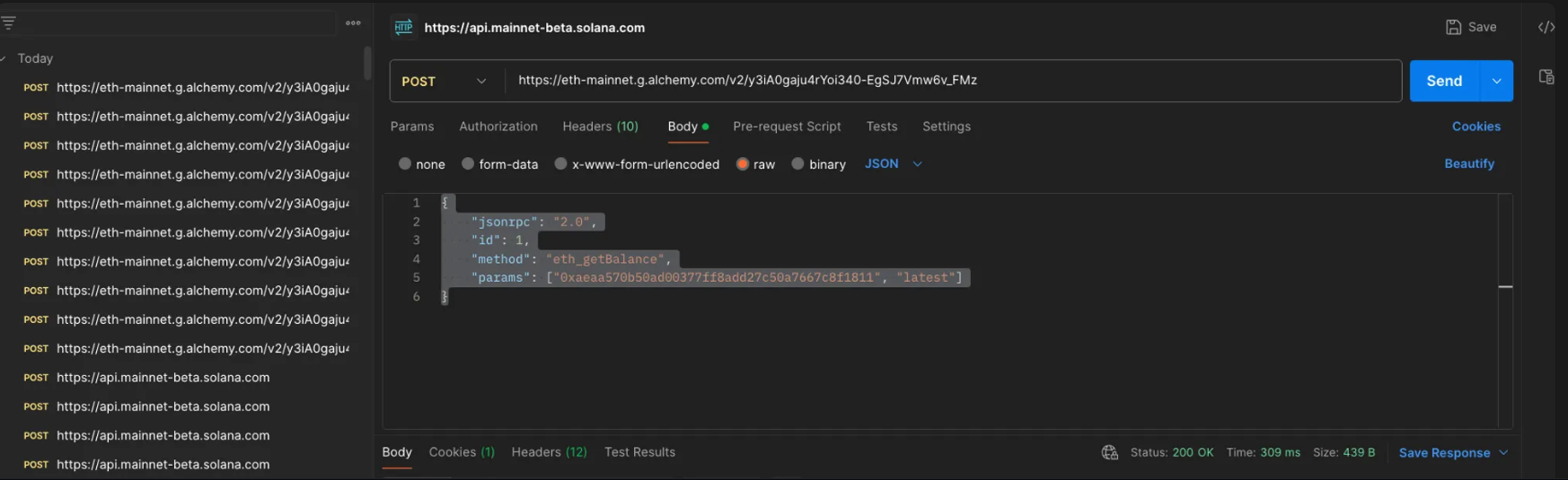

You can use tools like Postman to send RPC requests to providers such as Alchemy, QuickNode, or a public Solana RPC endpoint.

Units: Wei and Lamports

When working with balances avoid floating-point decimals. Use integer smallest units instead:

• Ethereum: wei (1 ETH = 10^18 wei). Gwei commonly used for gas (1 ETH = 10^9 Gwei).
• Solana: lamports (1 SOL = 10^9 lamports).

Quick example (Node):

const { LAMPORTS_PER_SOL } = require("@solana/web3.js");
console.log(LAMPORTS_PER_SOL); // 1000000000

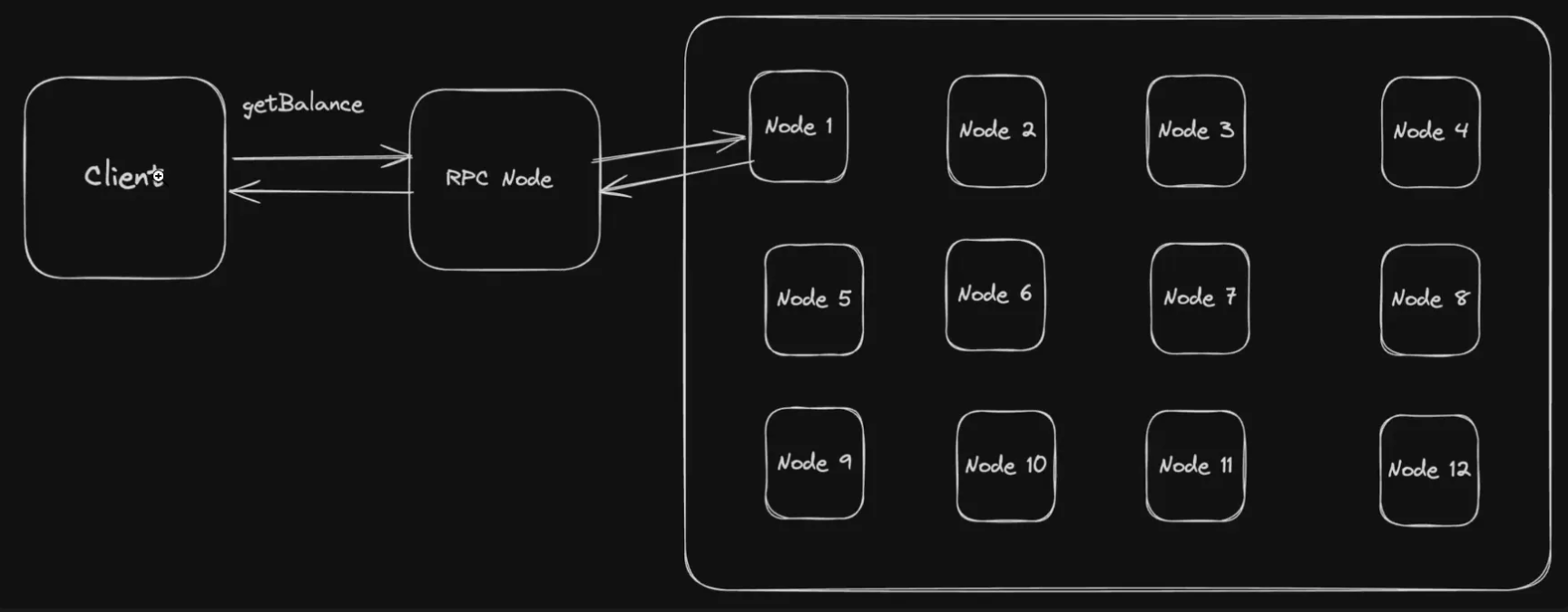

RPC servers and scaling

• An RPC server is an intermediary between clients and blockchain nodes. It does not participate in consensus or staking.
• You can scale RPC capacity by adding more nodes and load-balancing requests. Public providers (Alchemy, QuickNode, Helius) manage this for you.

Notes / To-do:

• Add the images used above into public/images/blog/:
  • keccak-eth-sol-rpc-cover.png
  • keccak-diagram-01.png
  • eth-address-derivation.png
  • solana-key-diagram.svg
  • frontend-backend-rpc.png
  • postman-rpc-example.png
  • rpc-node-cluster.png

I added the post content and image placeholders — please copy the screenshots you attached into the files listed above (under public/images/blog/) and I'll help wire them in or tweak captions if you want.
